Pay Attention：

1. Led strip welded by 0.5m is very normal in an electronic product,not a quality problem.if you mind this, do not place order！

2.

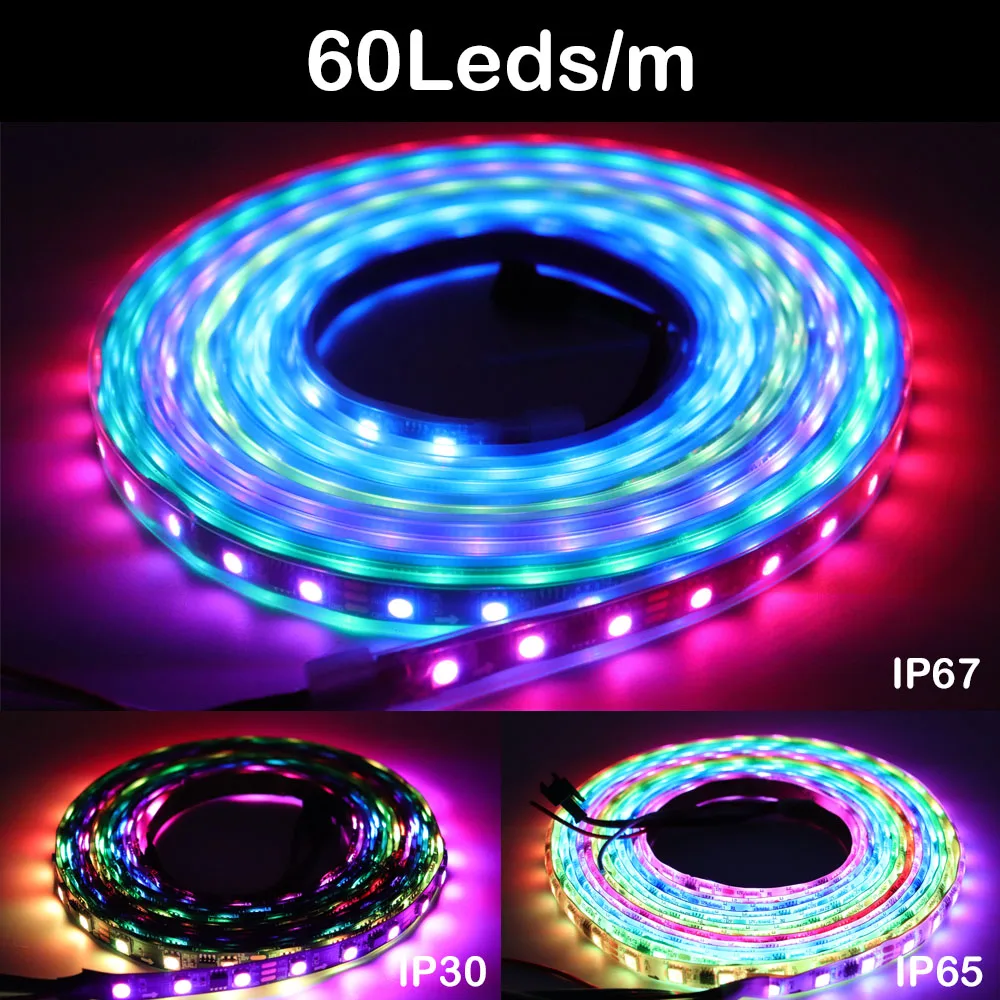

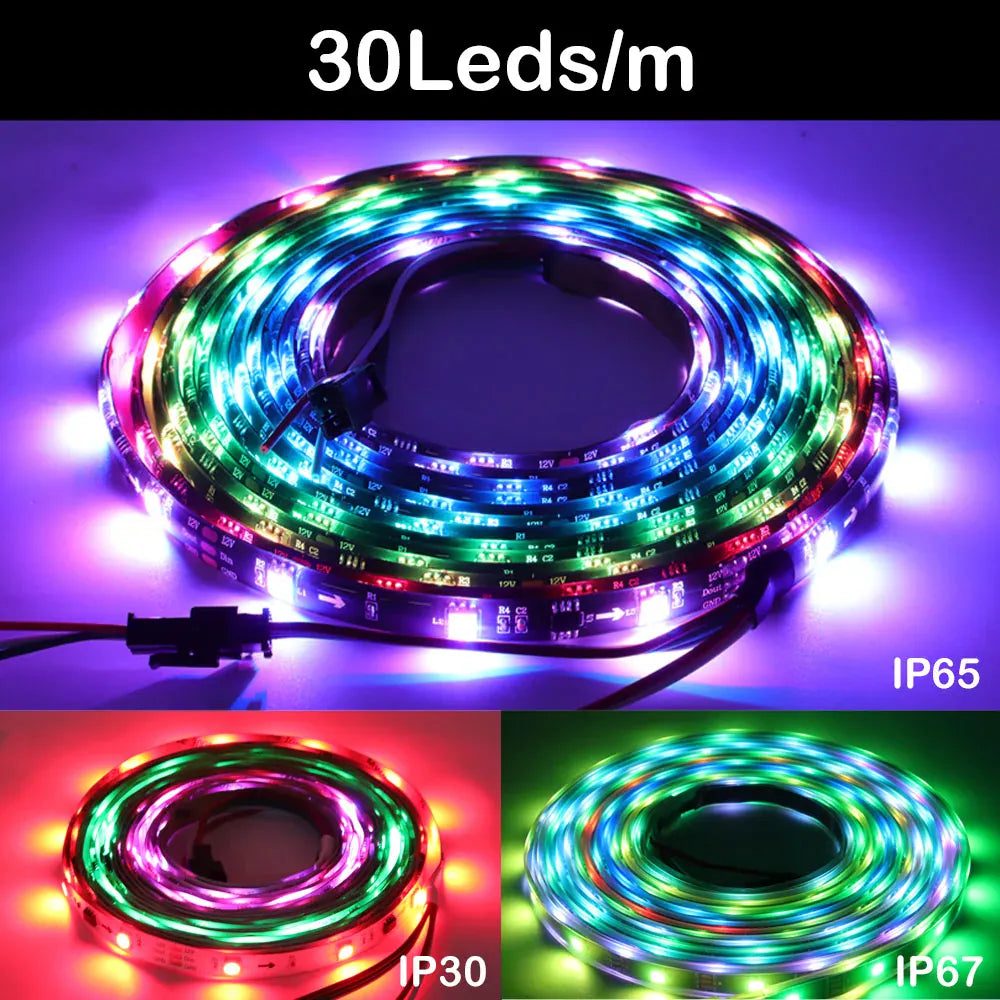

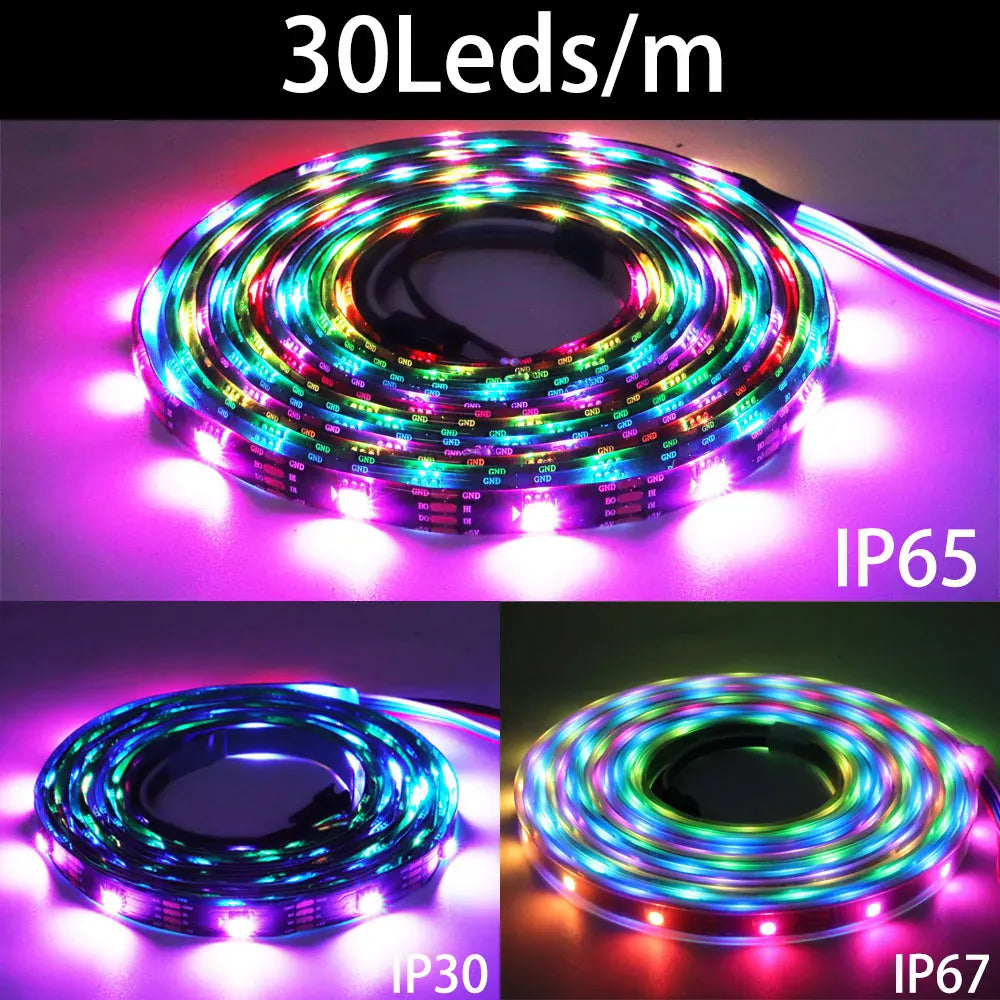

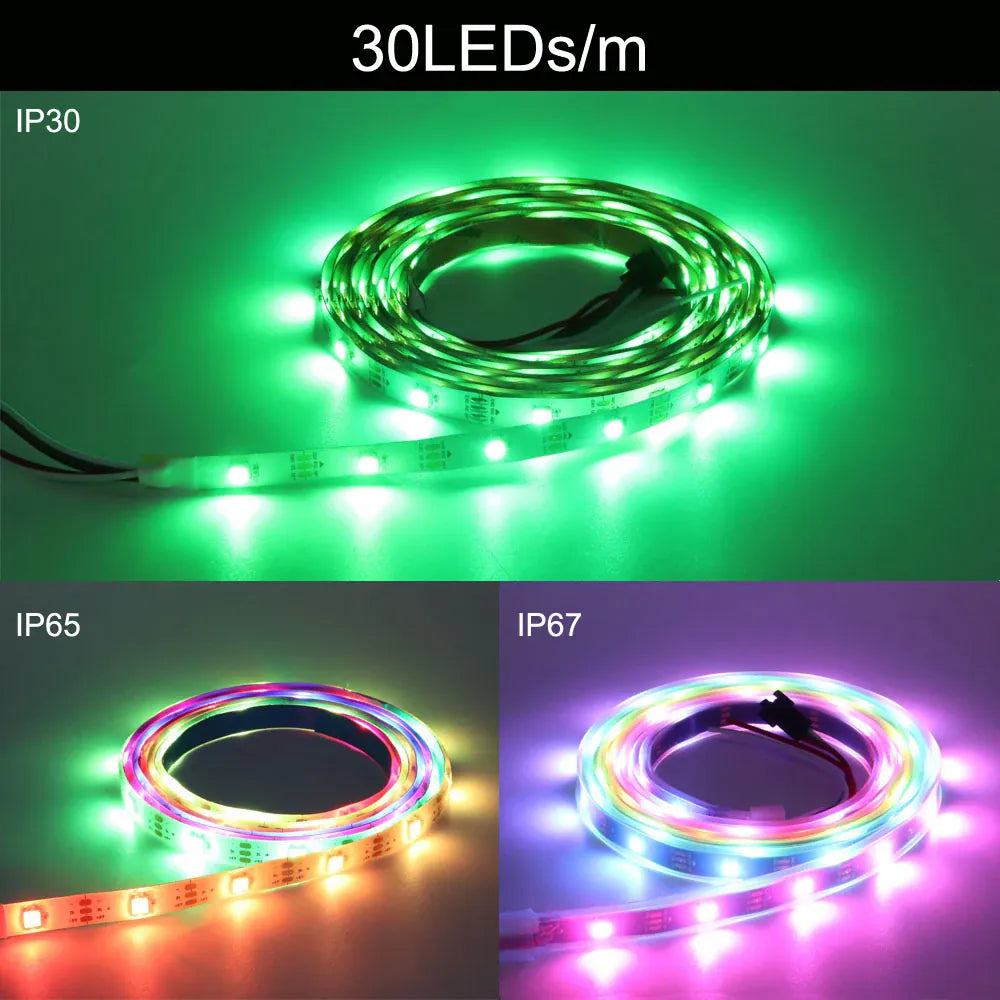

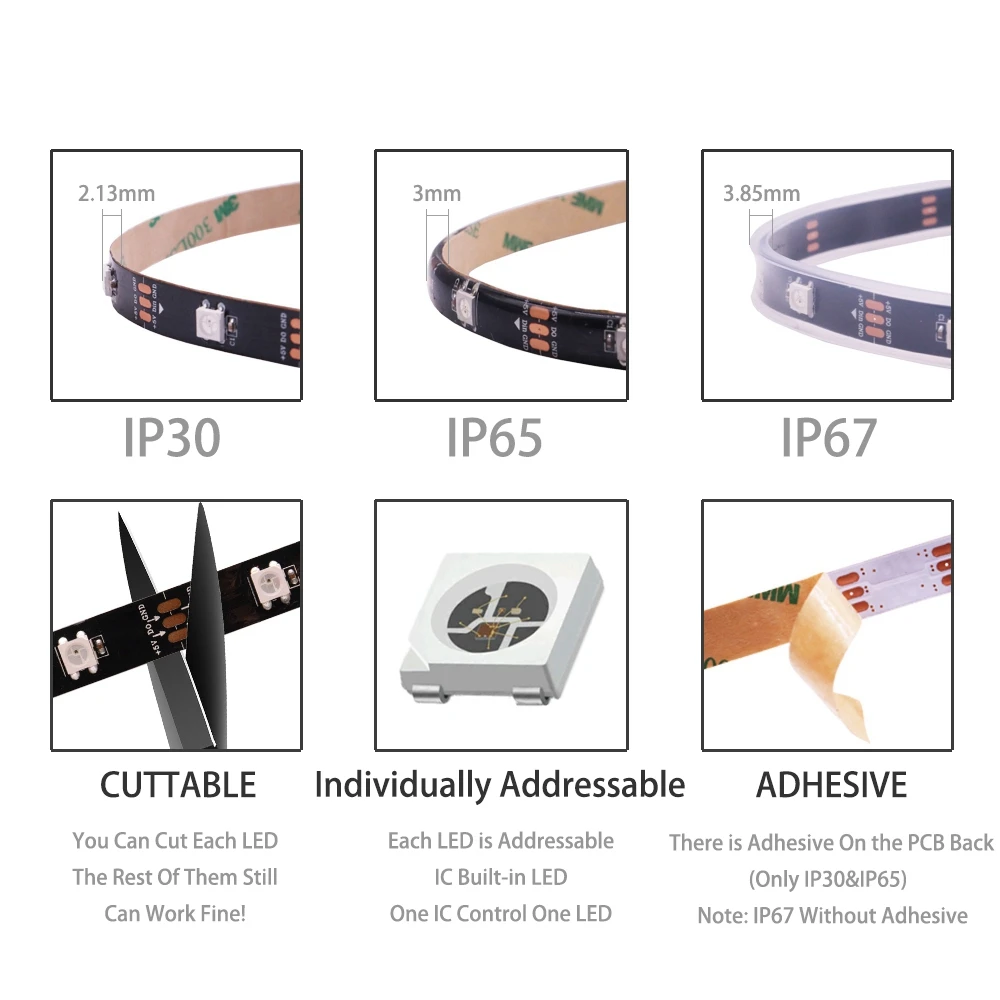

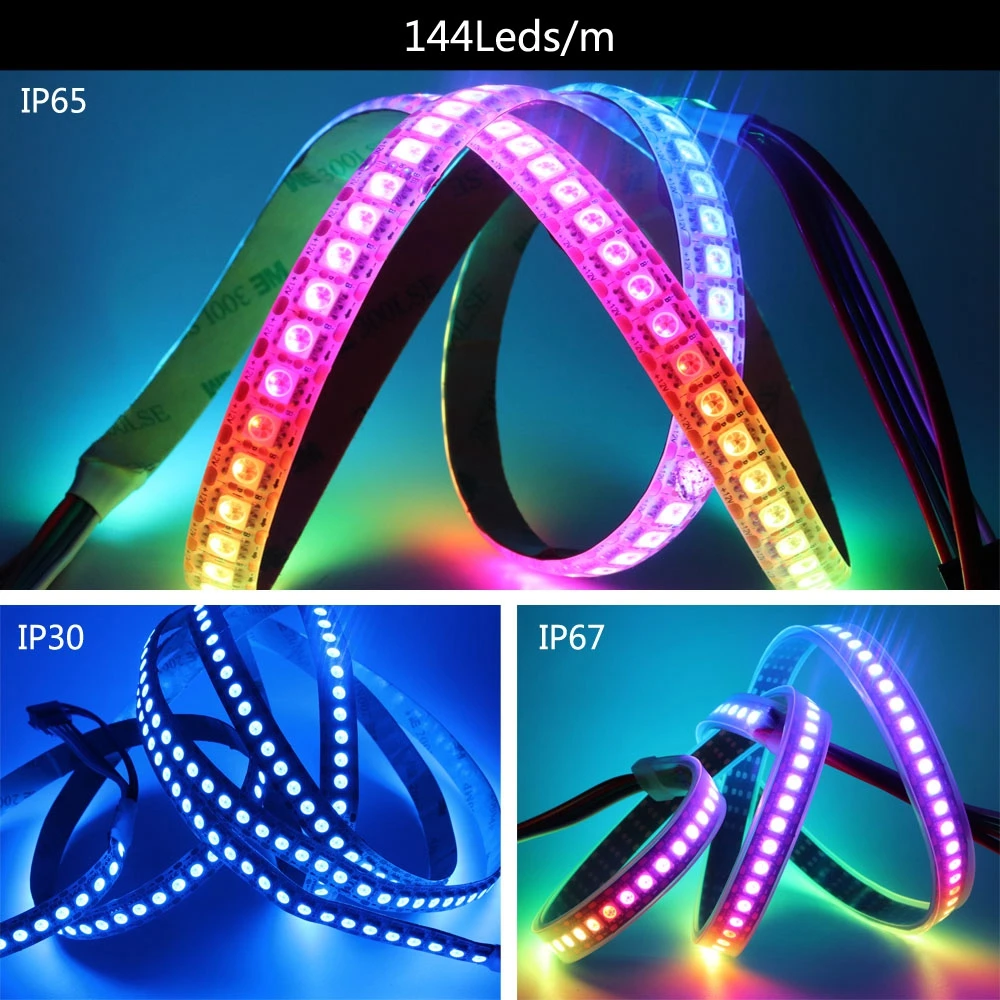

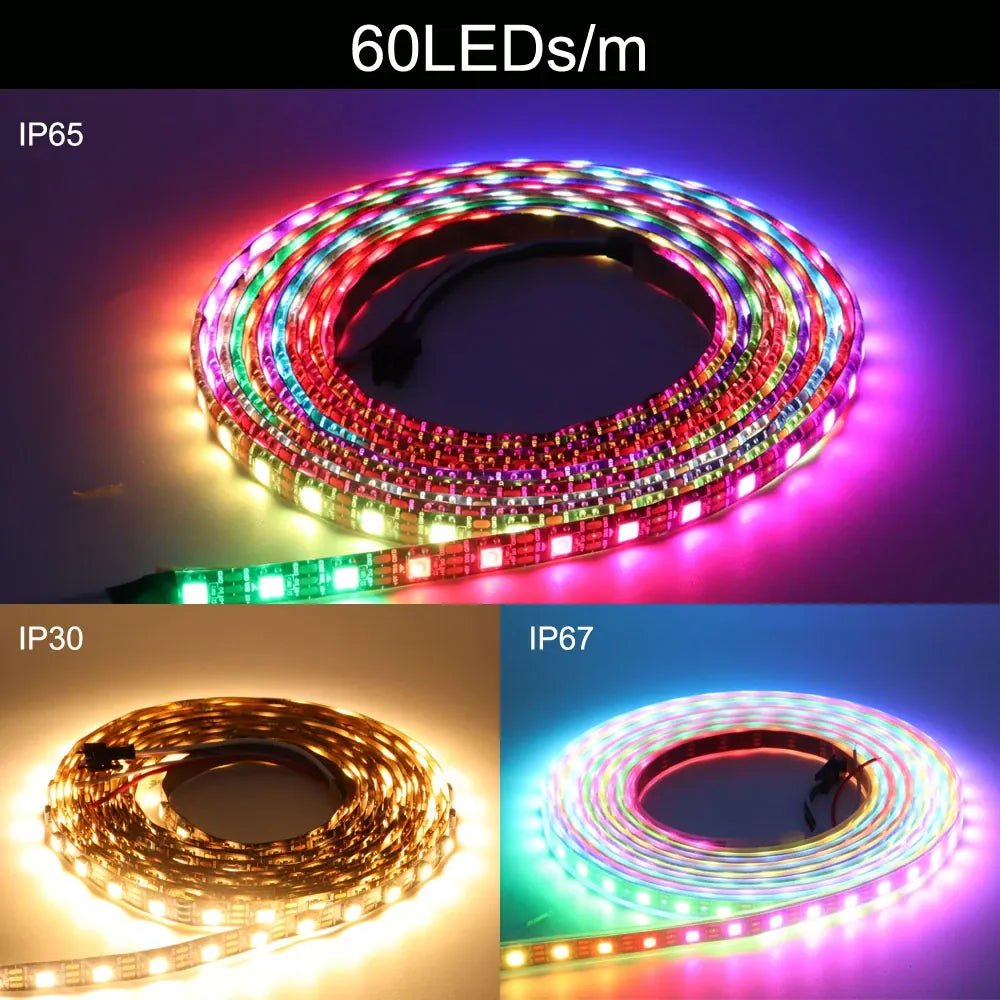

IP30: Non- Waterproof

IP65: Waterproof in Silicon Coating

IP67: Waterproof in SiliconTube (No Double-sided Adhesive)

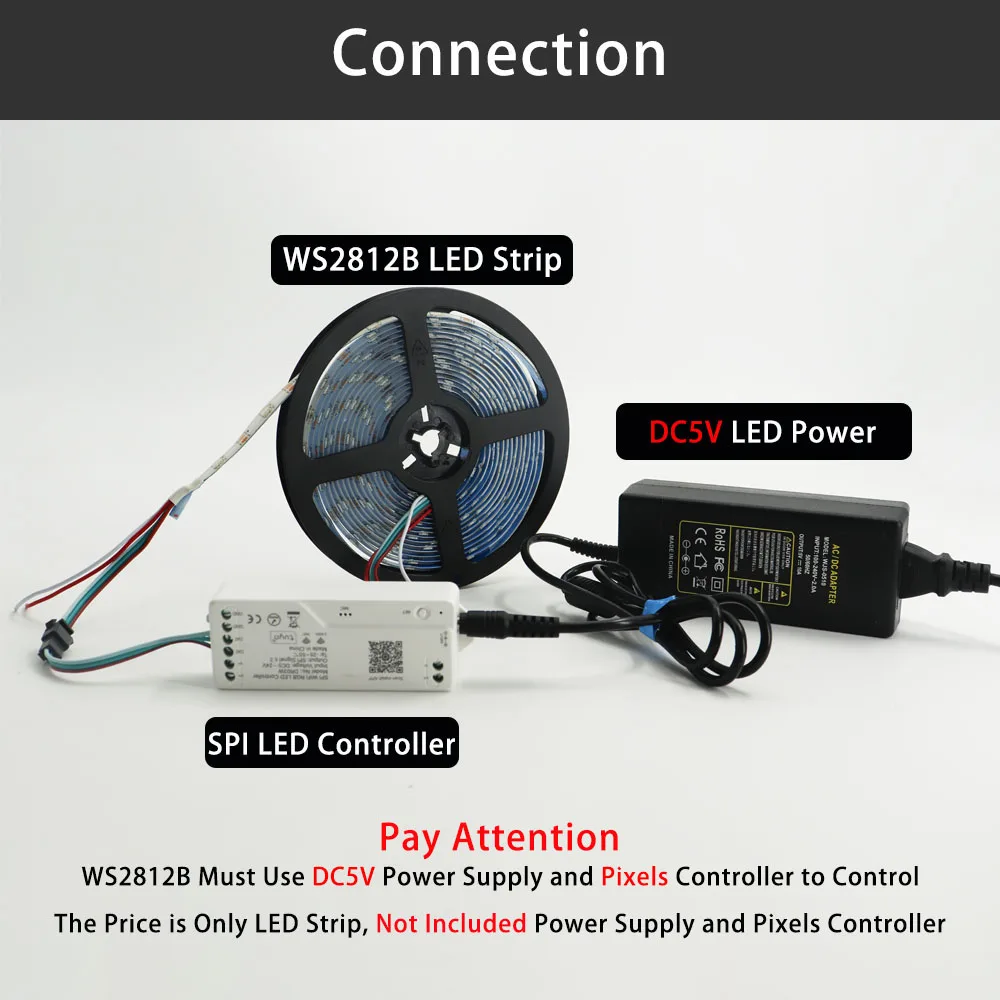

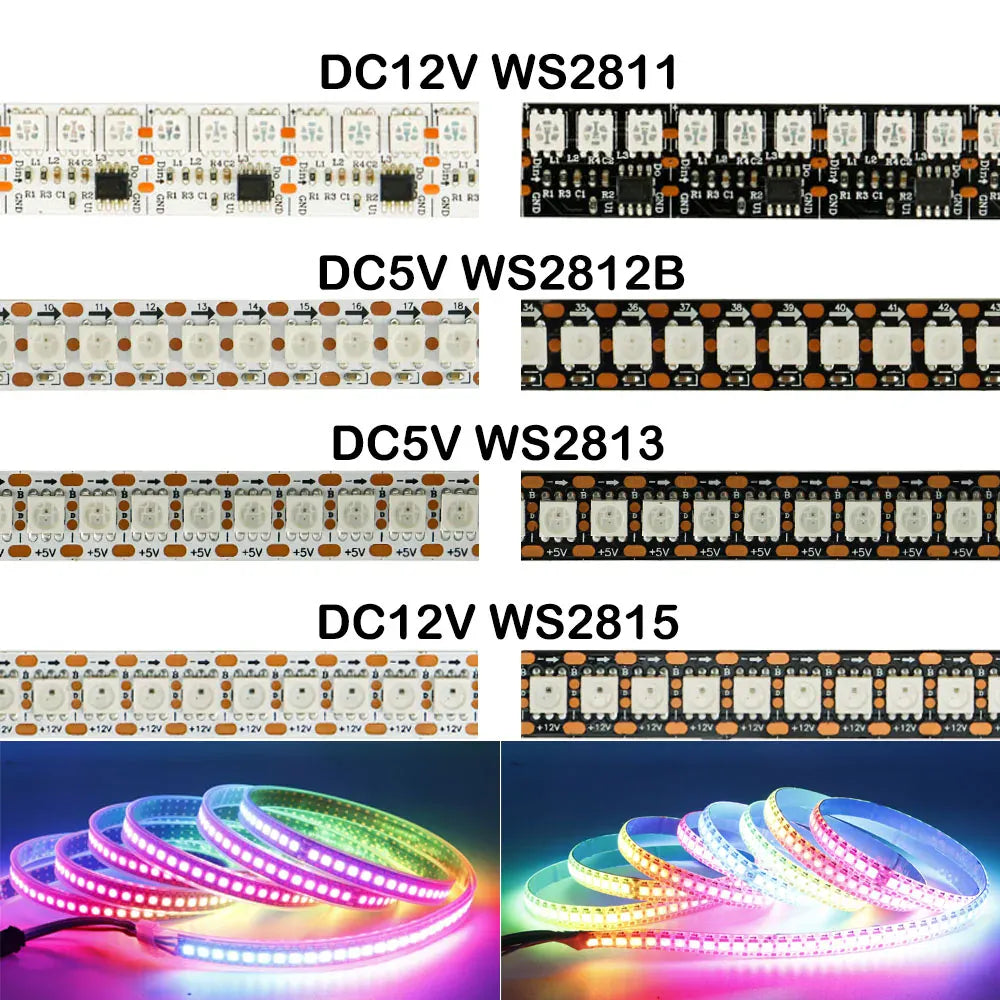

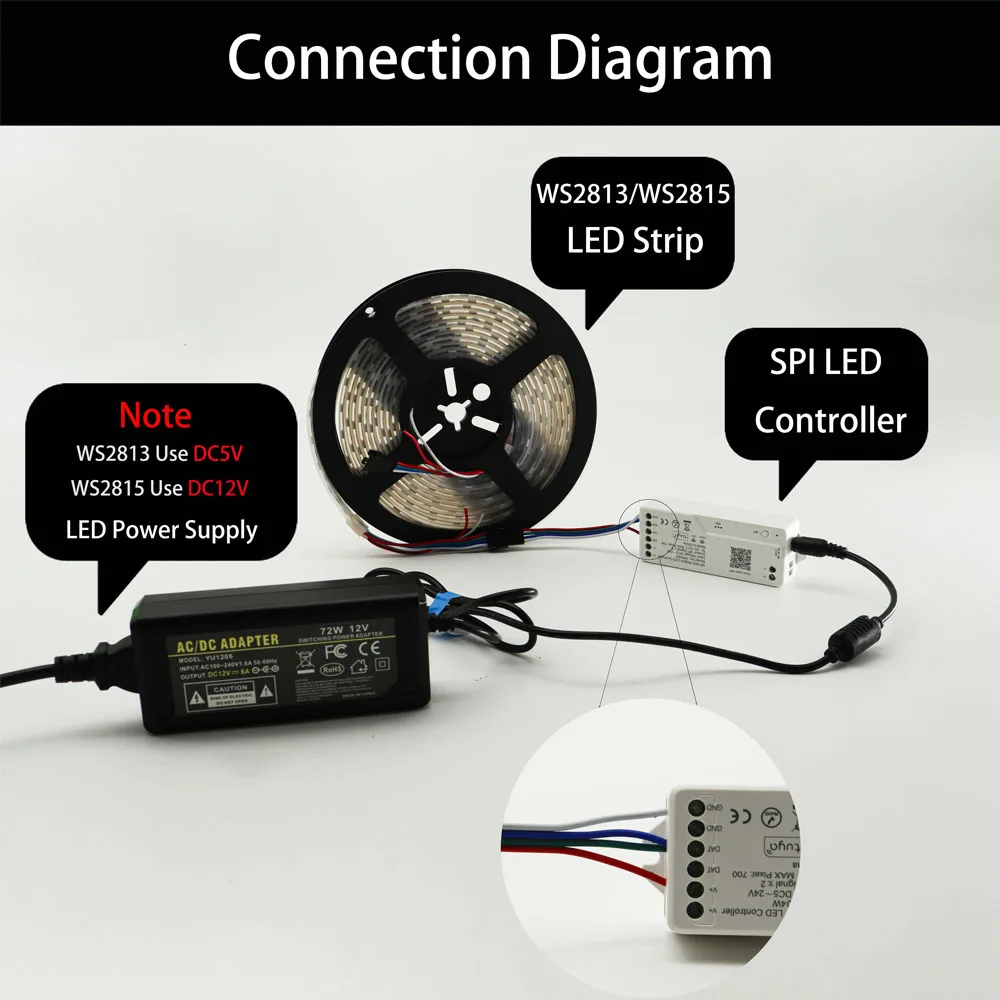

~WS2812B Must Use DC5V Led Power Supply

~WS2811 / WS2815 Must Use DC12V Led Power Supply

This link is not include power supply and not include led controller,please know it

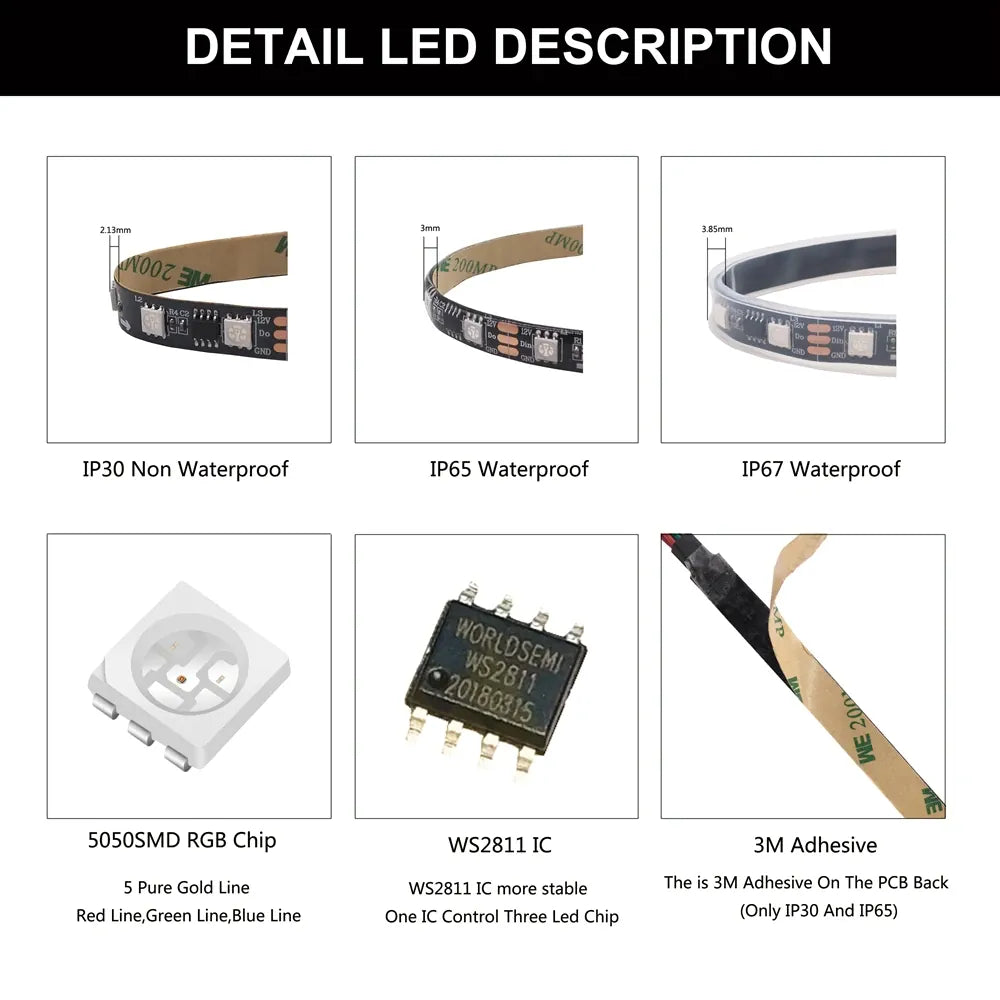

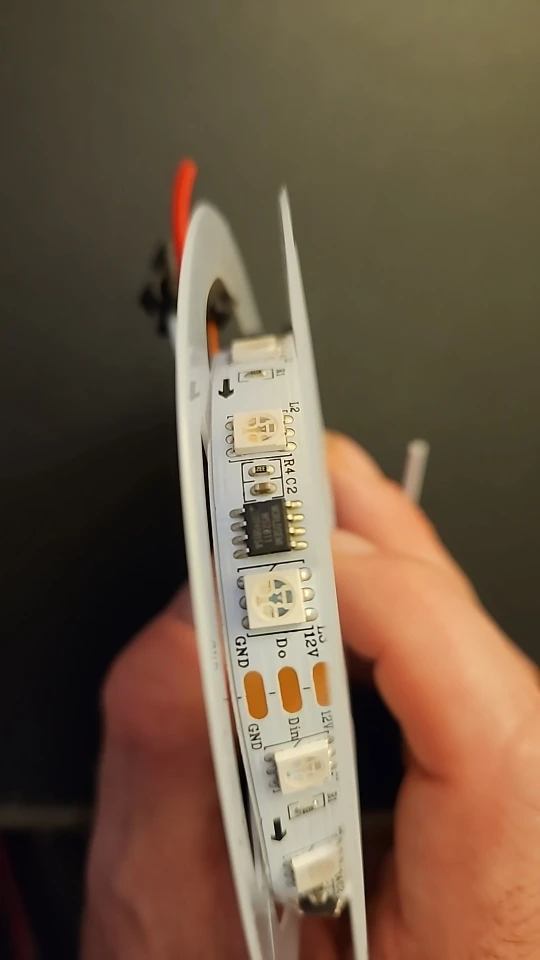

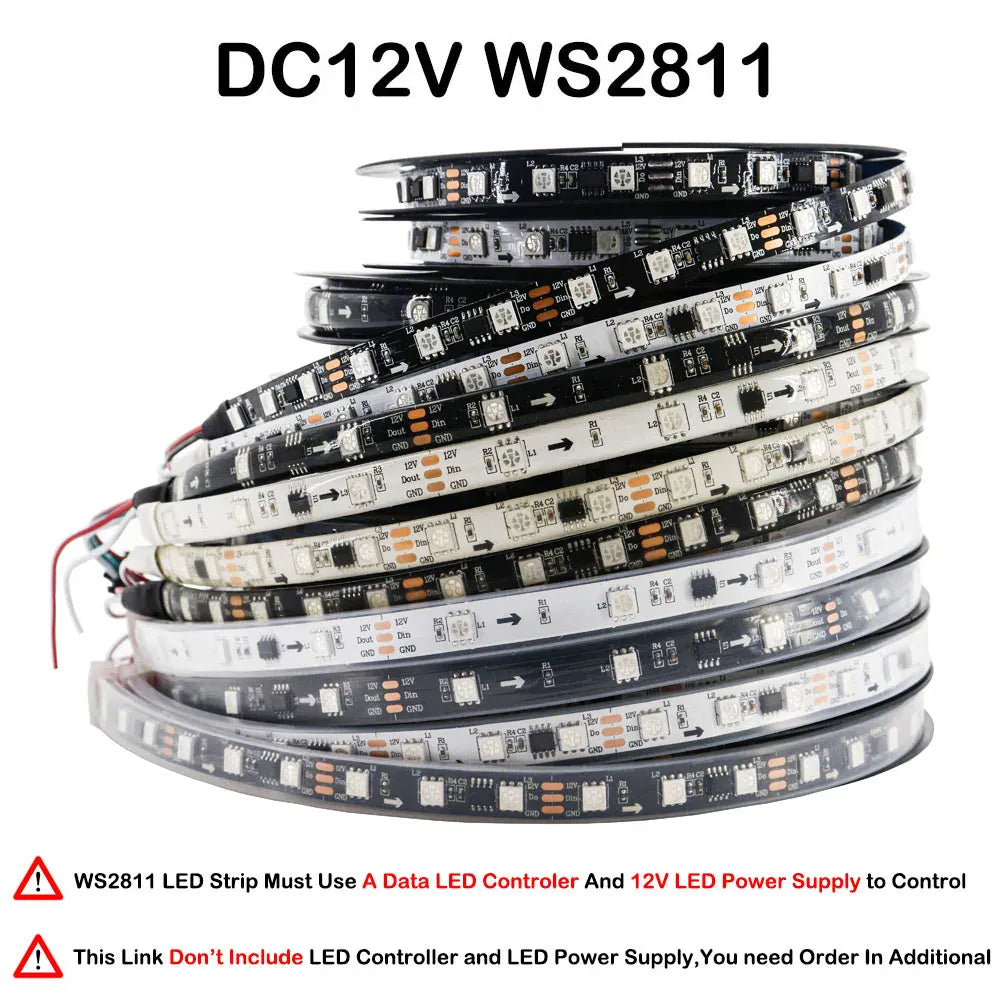

WS2811 LED Strip:

(1) Working Voltage: DC12V

(2) LED Source: SMD 5050 RGB

(3) LED Chip: Epistar

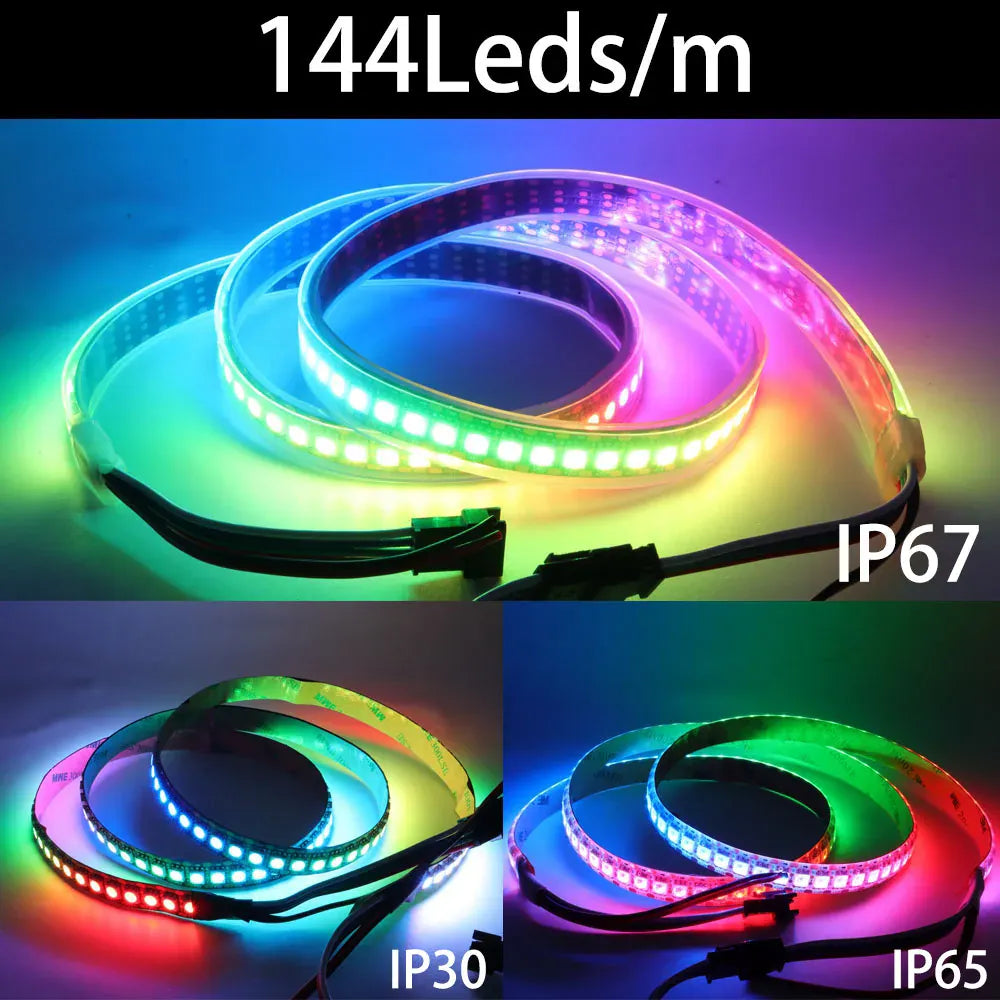

(4) LED QTY: 30/60/144LEDs / M

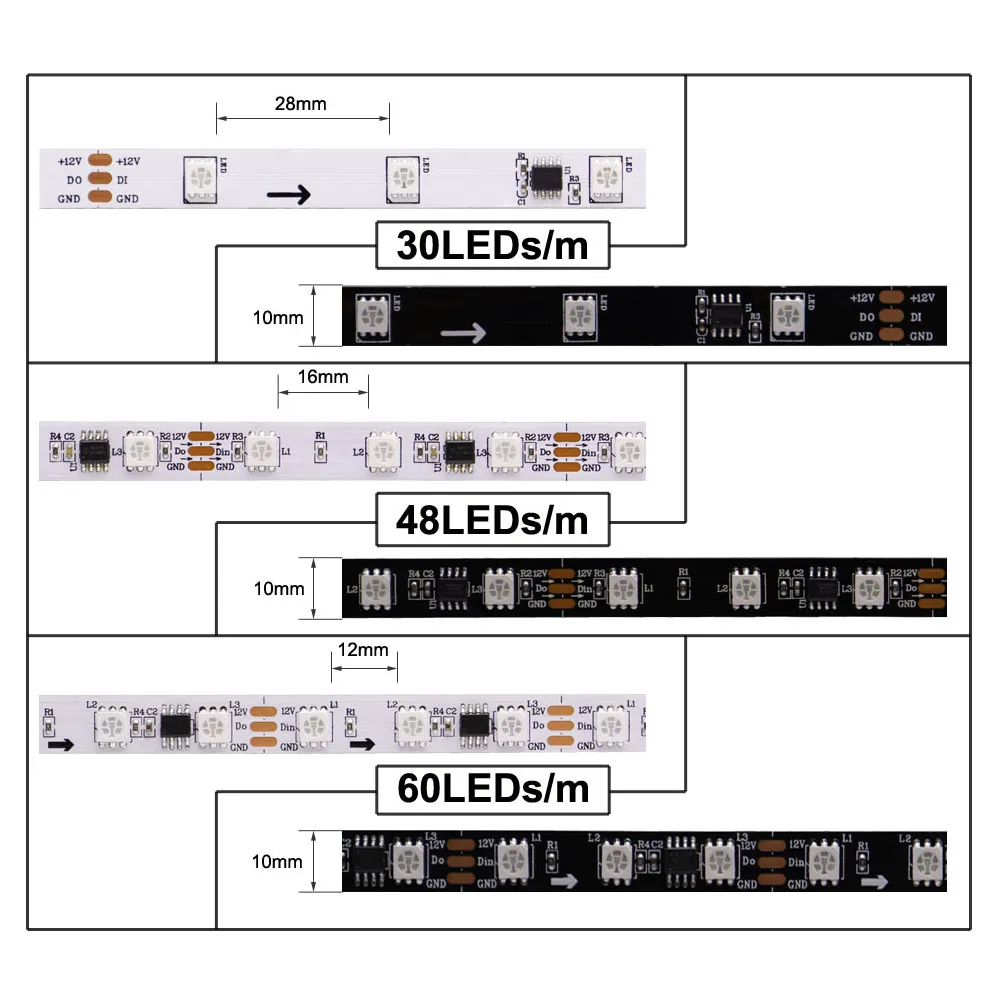

(5) PCB Width:

30Leds/m---10mm

60Leds/m---10mm

144Leds/m---16mm

(6) IC QTY: 10/20M

(7) Power: 9/18/43.2W /M

(8) Grey scale: 256 / Color

(9) Cutability: 3 led / cutting (Similar WS2811, 1 ic control 3 LED)

(10) Beam Angle: 120 °

(11) Color Mode: 133Pattern & 100 Speeds

(12) IP Grade: ip30 non -waterproof / ip67 waterproof

(13) Dimension: 5000 x 10 x 2.4mm

(14) Packaging: 5m/roll 12v WS2811 RGB Strip + 3Pin Connector

(15) Warranty: 2Years

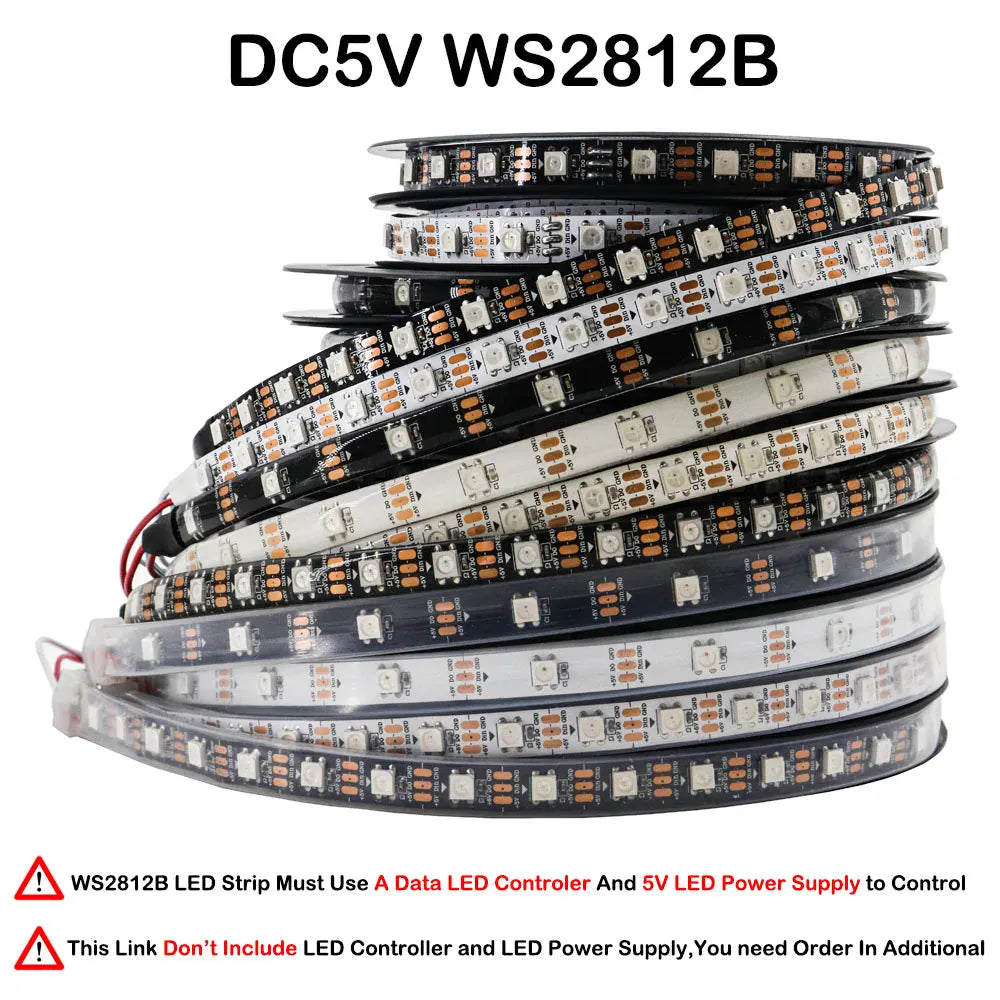

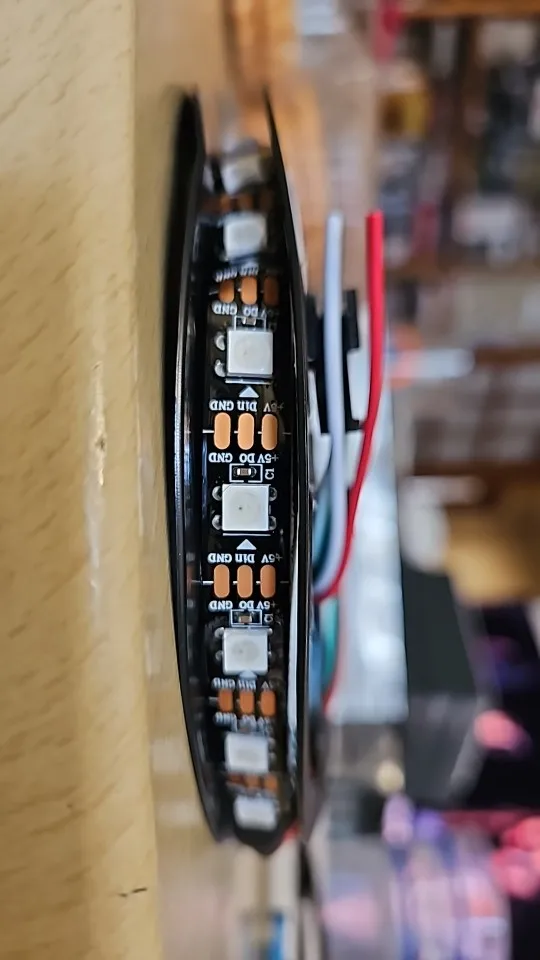

WS2812 LED Strip:

Input Voltage: DC5V

Power:

30Leds/m----9Watt/meter

60Leds/m----18Watt/meter

144Leds/m----43.2Watt/meter

LED Resource: WS2812B Led(5050 SMD RGB LED With Built-in Improved Version Of WS2811 IC)

LED: Each Led is Separately Controlled

IC Type: Improved Version WS2812 IC(Built Inside The 5050SMD RGB LED)

Of IC: 1 IC Drives 1 Led Chip

Pixels: 30/60/144/Meters

Pitch: 16.6mm(1000/64)

Grey Scale: 256

Bits/Color: 8-Bits/Color

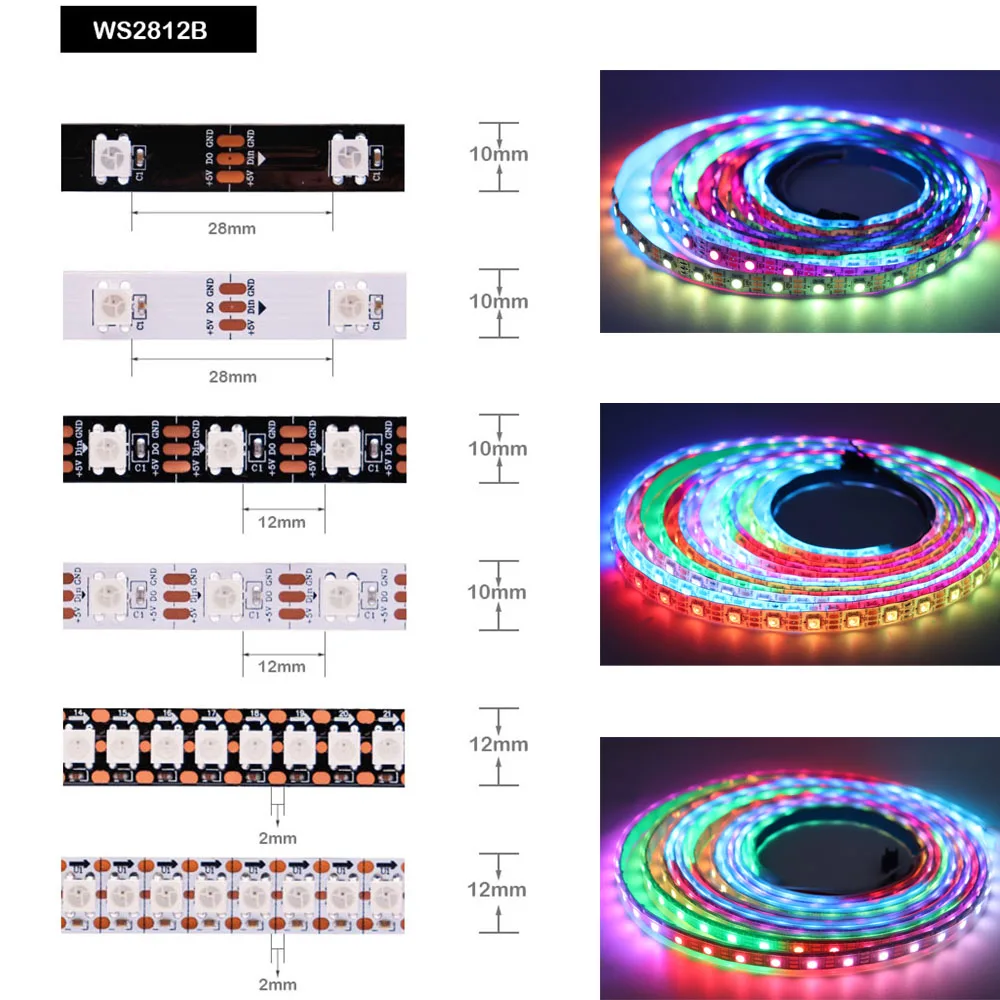

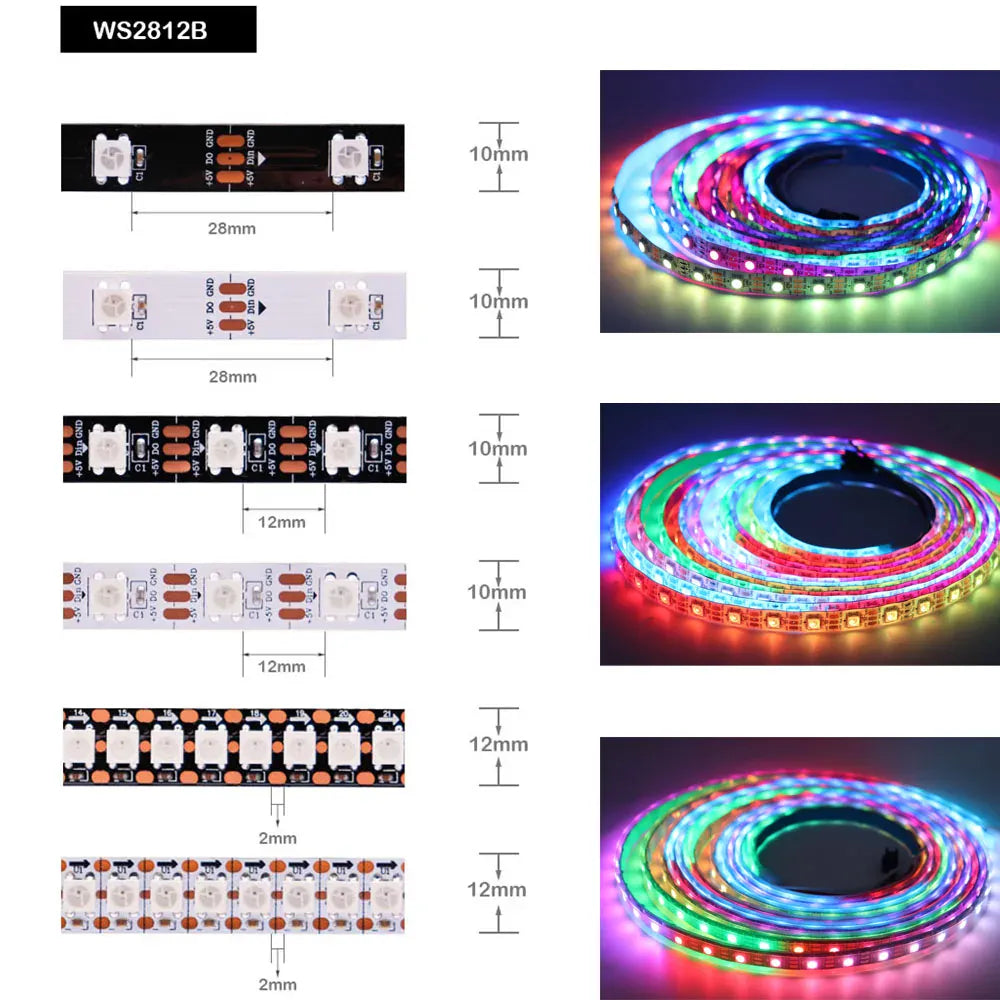

FPC Width:

30Leds/m----10mm

60Leds/m----10mm

144Leds/m----12mm

FPC color: Black/White

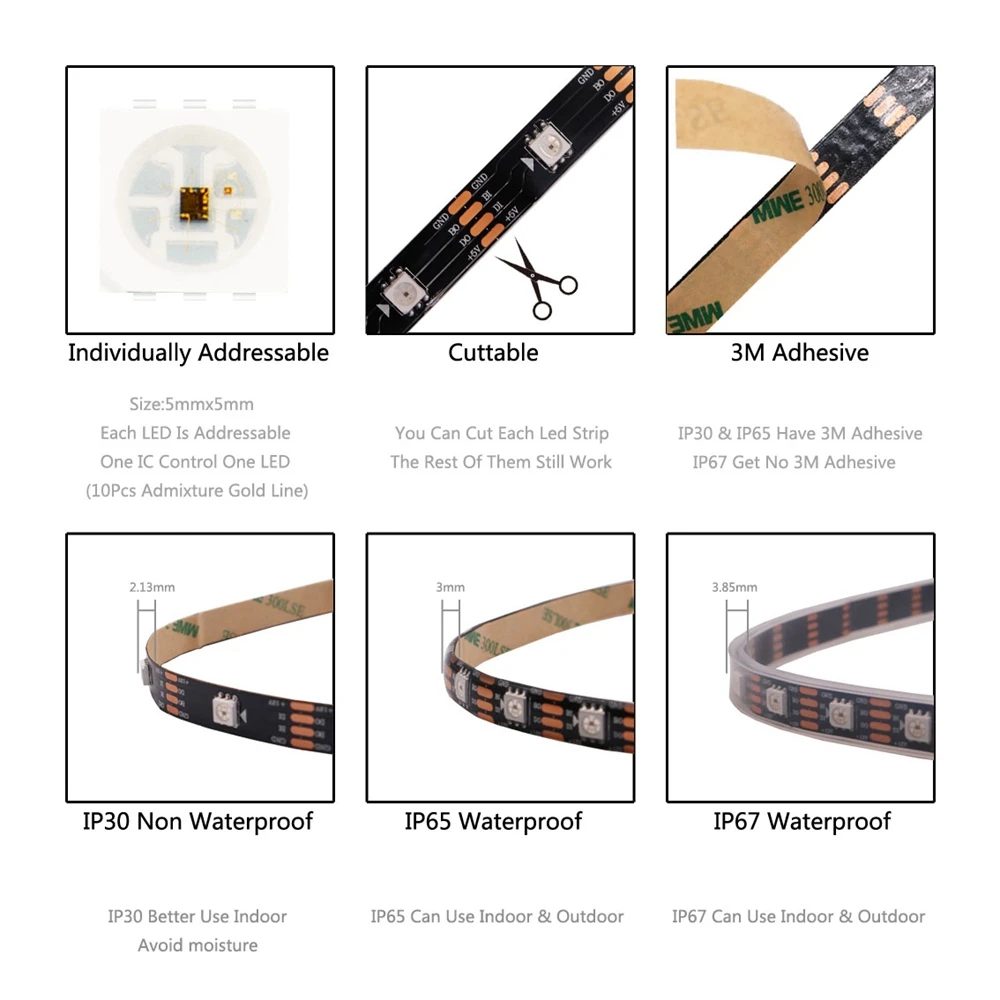

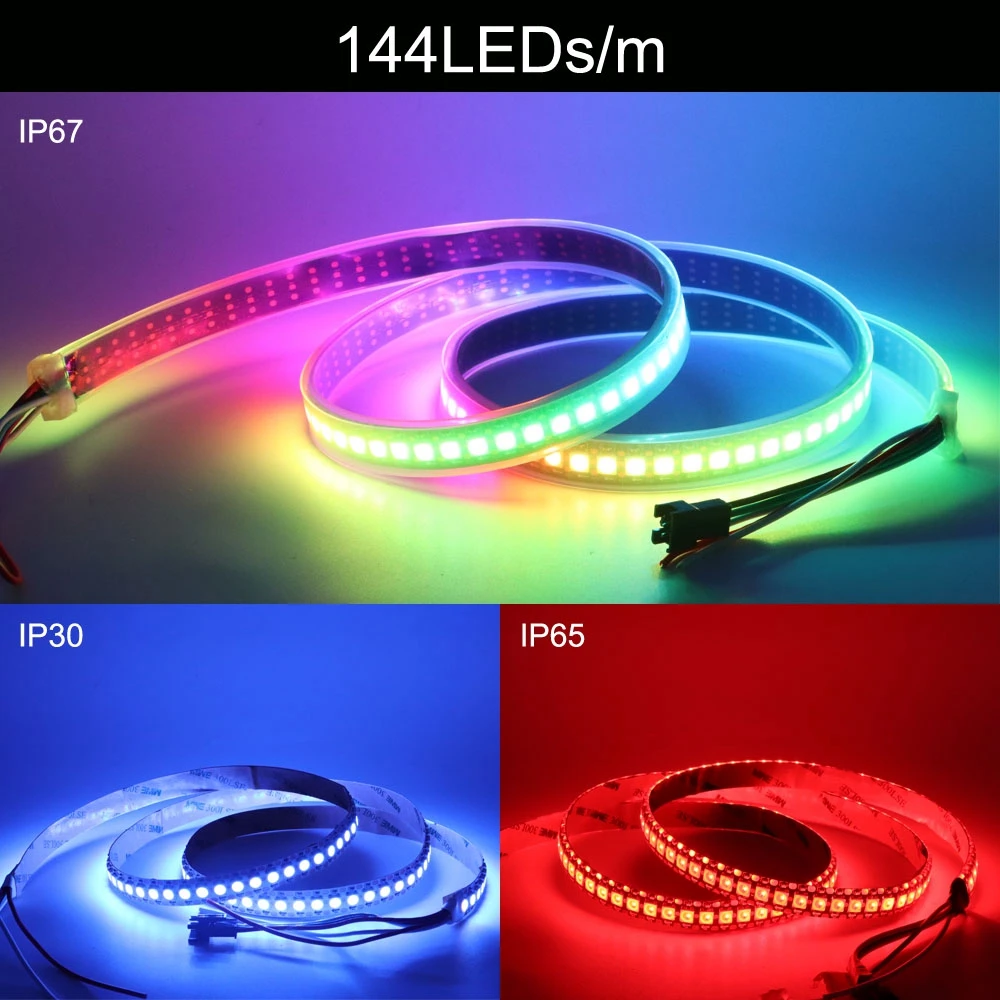

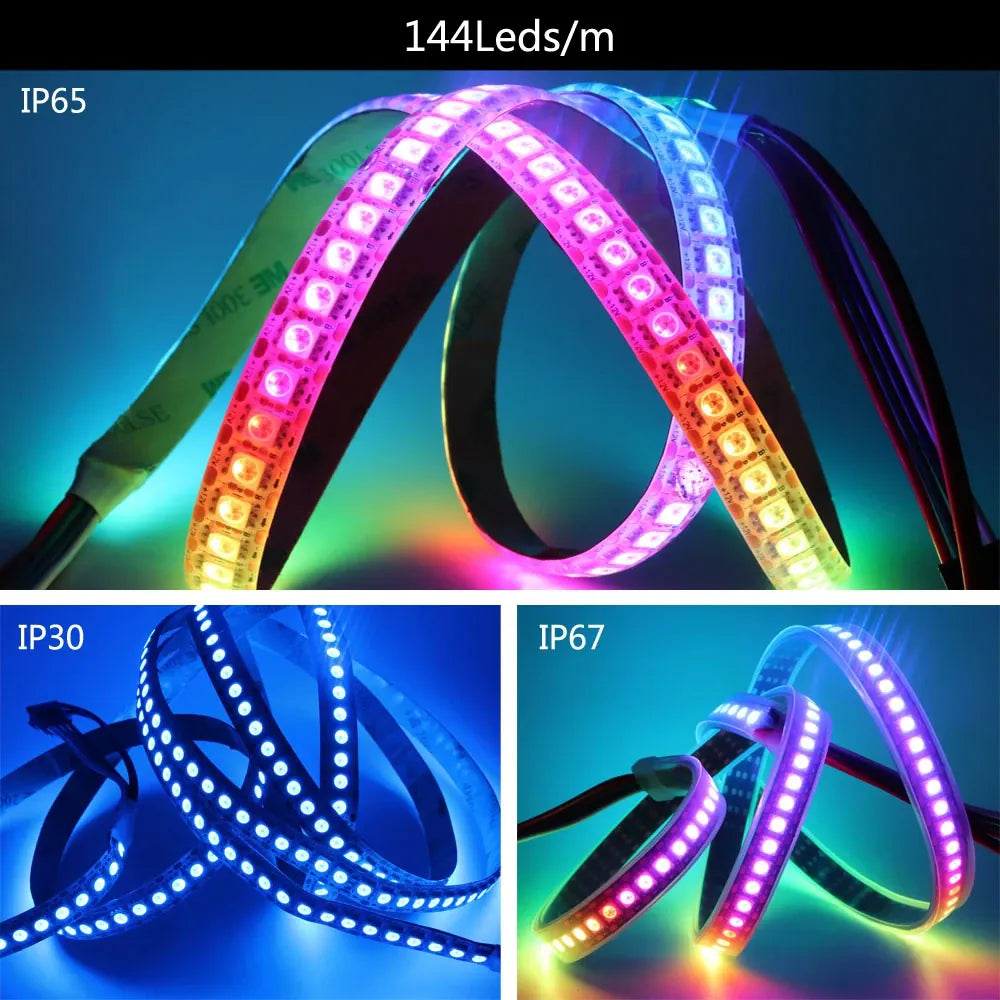

Protection Rate: IP30/ IP65 /IP67

Colors: Full Color RGB, Dream Color Changing

Cuttable: Every LED is Cuttable

Package:In Anti-Static Bag,IP30 IP65 With 3M Adhensive Tape On The Back(IP67 Without 3M Adhensive)

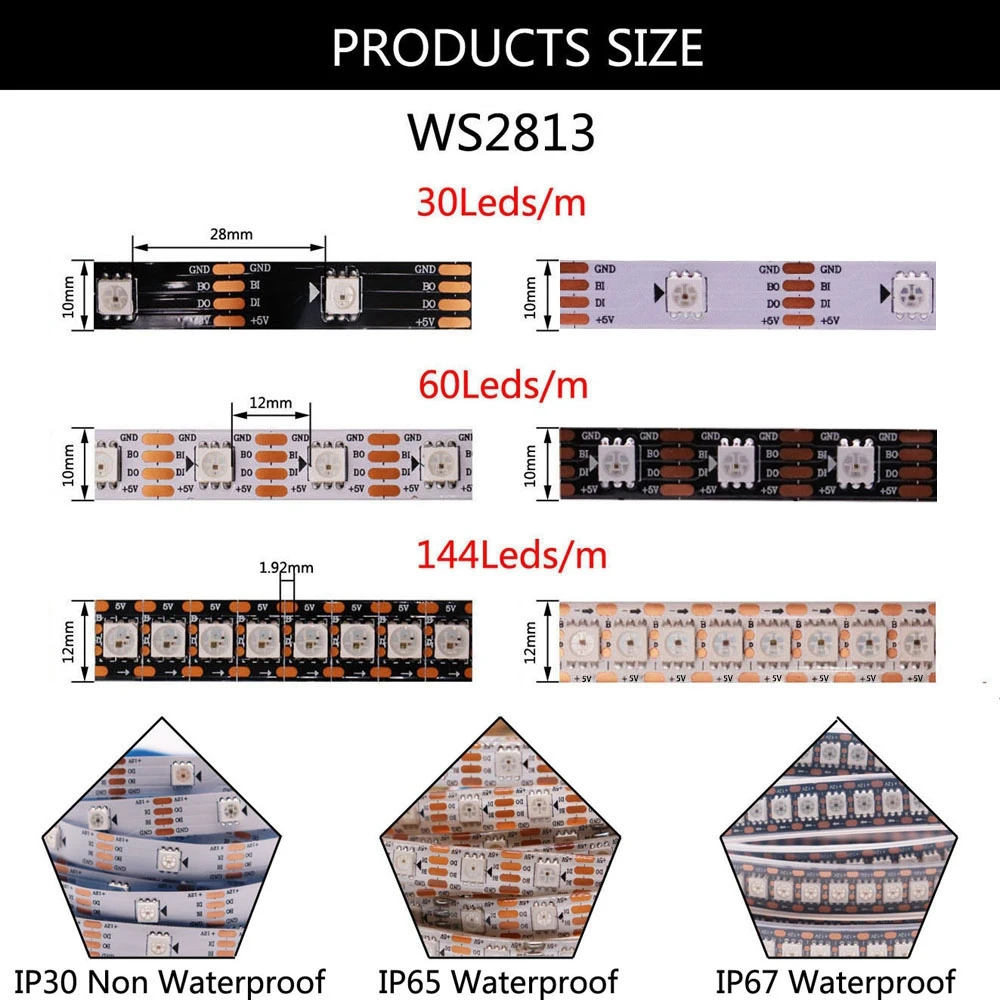

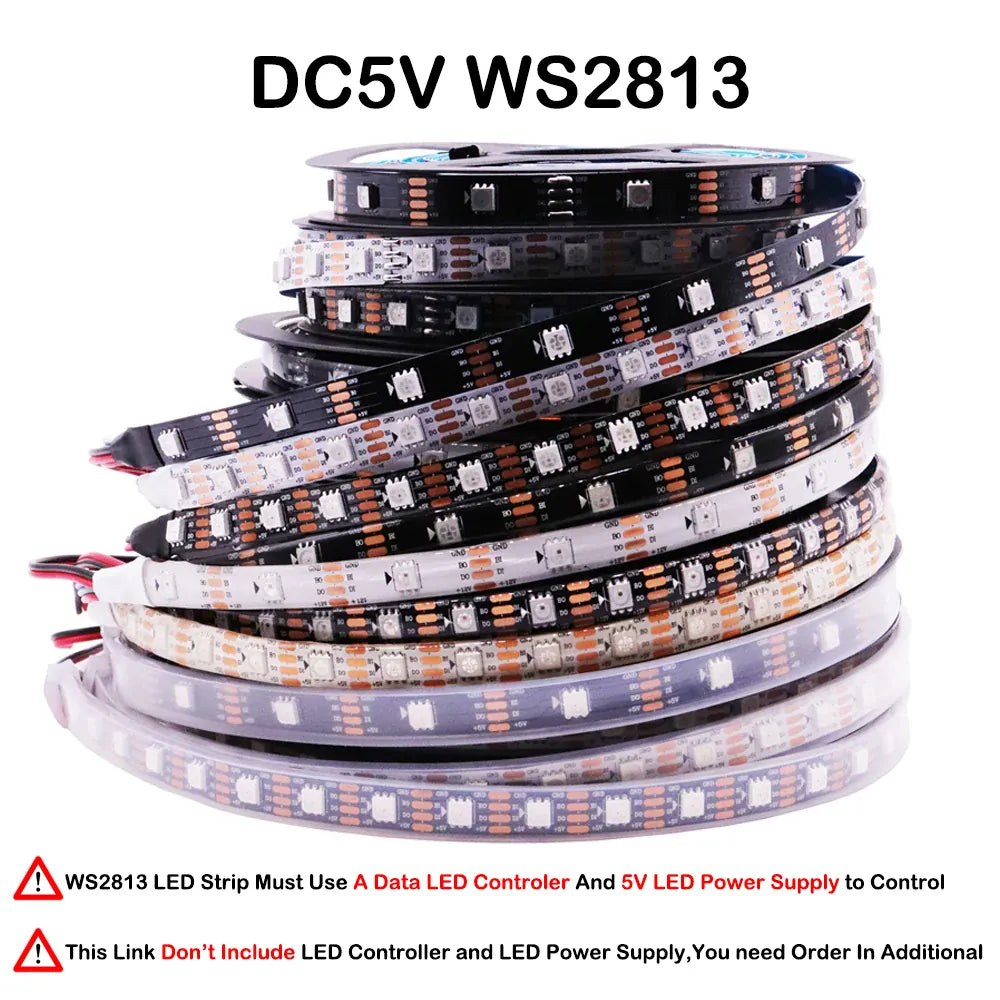

WS2813 LED Strip:

Input Voltage: DC5V

Power:

30 Leds/M --- 9 Watt/Meter

60 Leds/M --- 18 Watt/Meter

144 Leds/M --- 43.2 Watt/Meter

LED Resource: WS2813 led (5050 SMD RGB LED with built-in improved version of ws2811 ic)

LED: Each LED is separately controlled

IC Type: Improved version ws2813 IC(built inside the 5050 smd rgb led)

Of IC: (1 IC Drives 1 led chip)

Pixels: 30Leds/60Leds/144Leds/meter

Pitch: 16.6mm(1000/64)

Grey Scale: 256

Colors: Full color RGB, dream color changing

Bits/Color: 8-Bits/Color

FPC Color: BLACK / White

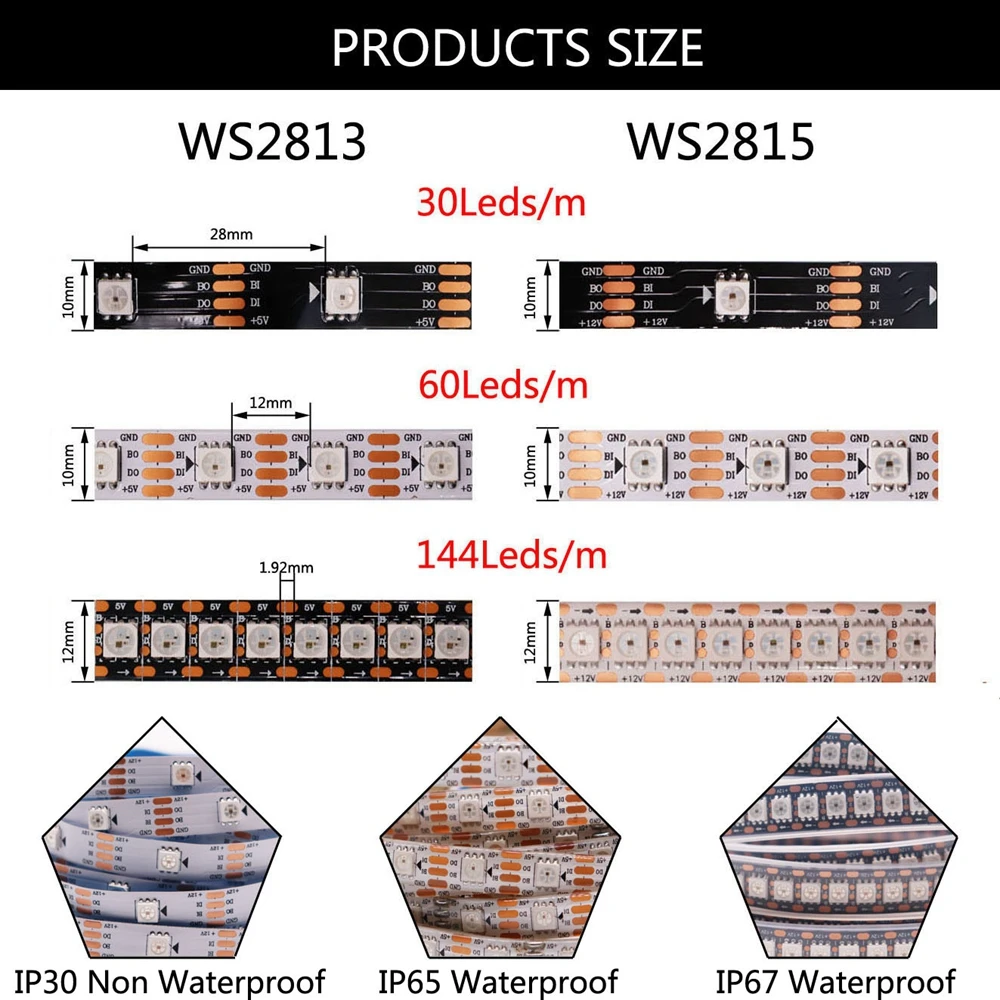

FPC Width:

30 Leds/M --- 10 MM

60 Leds/M --- 10 MM

144 Leds/M --- 12 MM

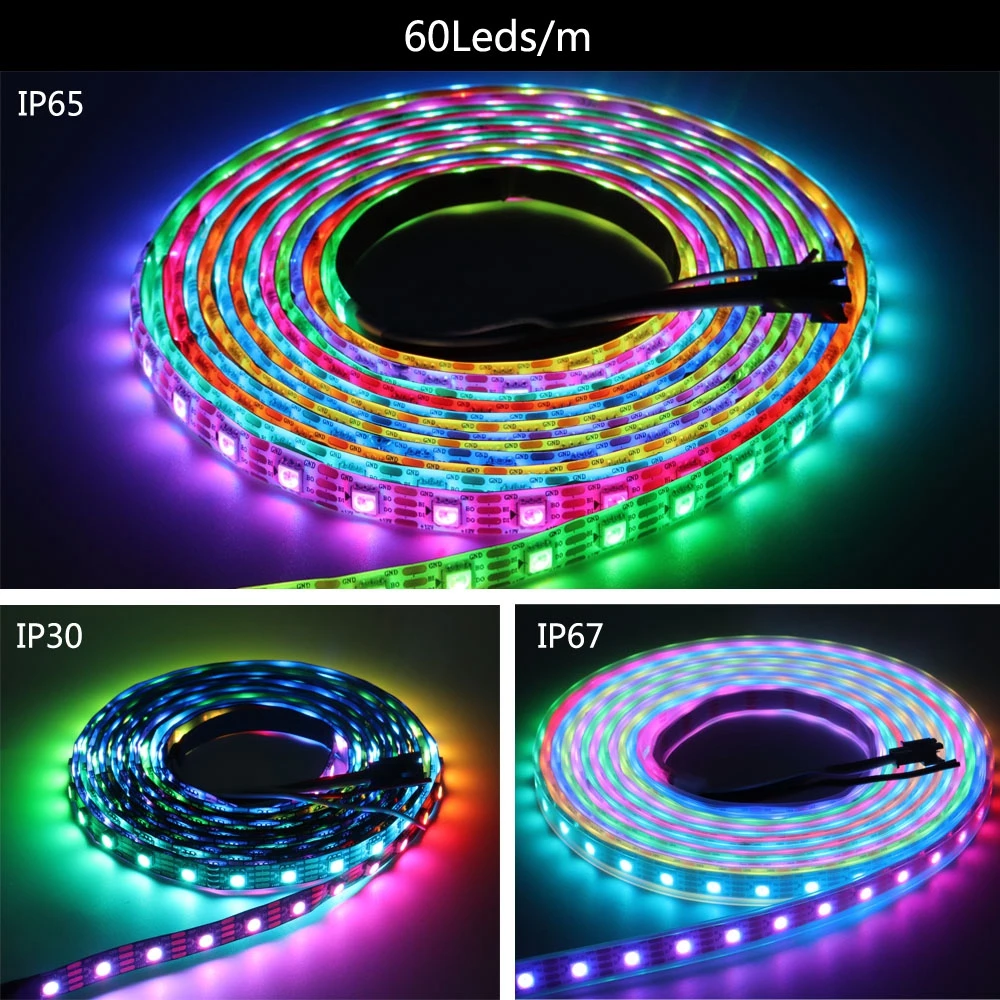

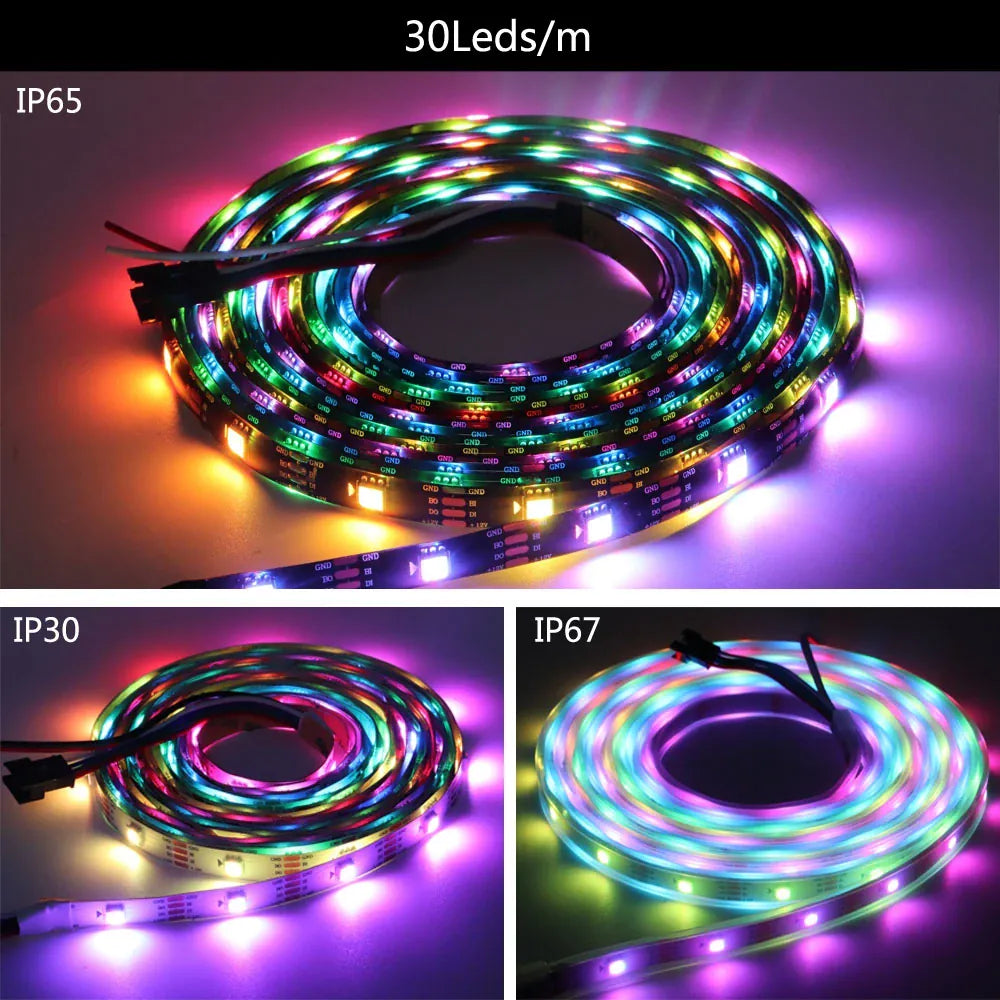

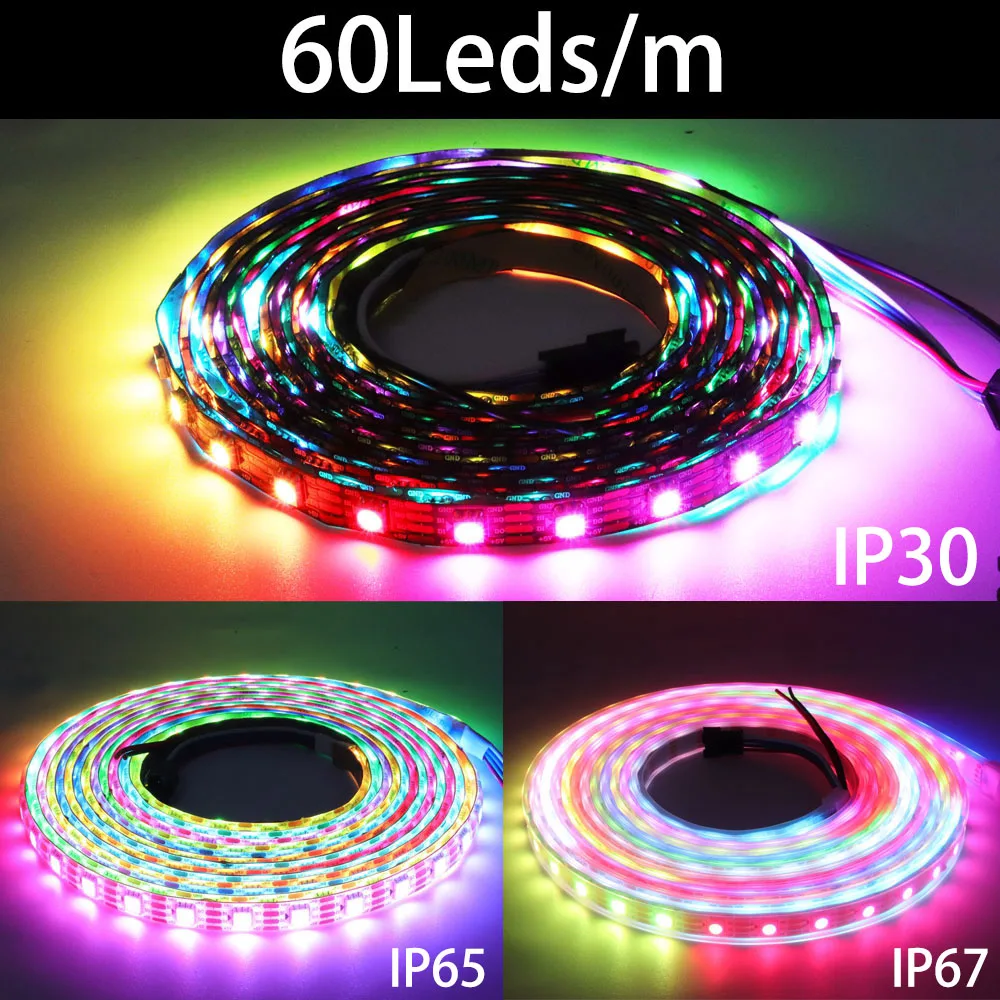

Protection Rate:

IP30 Non-Waterproof

IP65 Waterproof in Silicon Coating

IP67 Waterproof in Silicon Tube

Cuttable: Every LED is cuttable

Package: In anti-static bag, IP30 IP65 with 3M adhensive tape on the back (IP67 without 3M adhensive), each strip with one free male connector for connector

Working Temperature: -40 - 70 °C

Storage Temperature: -50 - 80 °C

Source Life: 50,000 hours

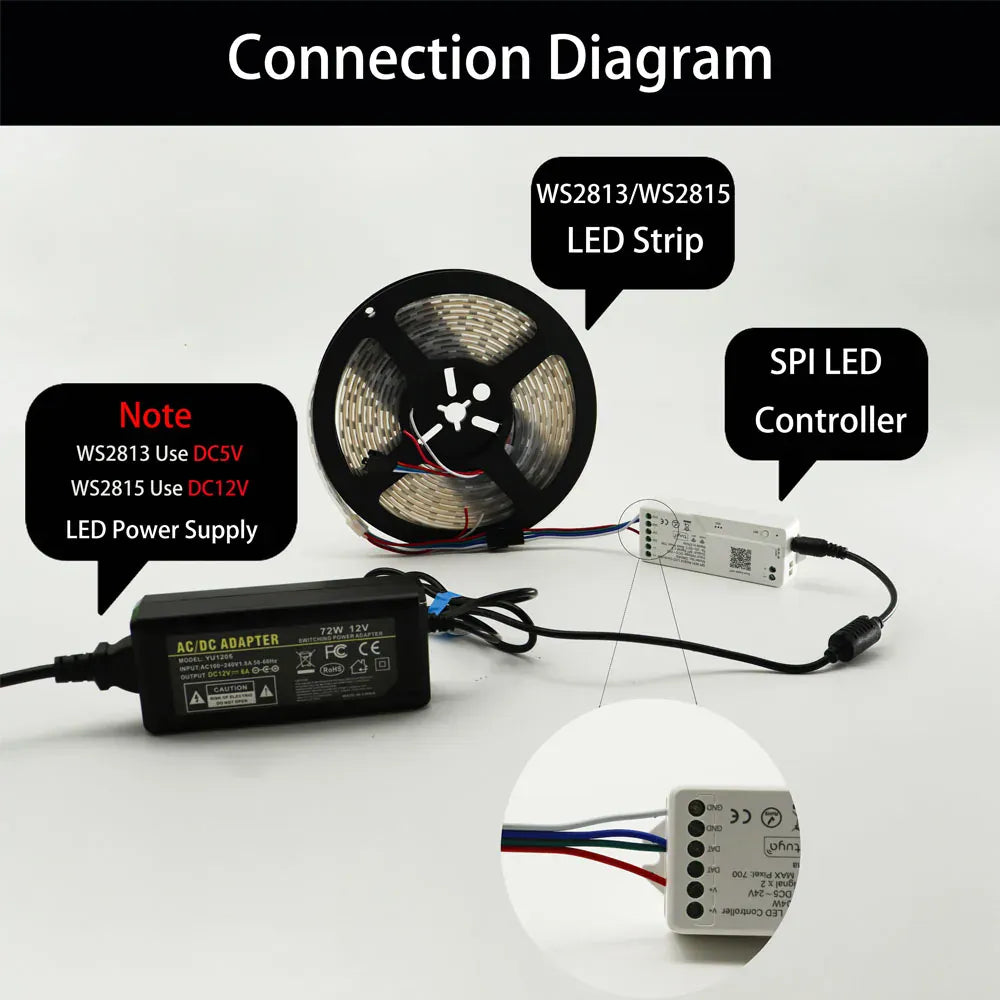

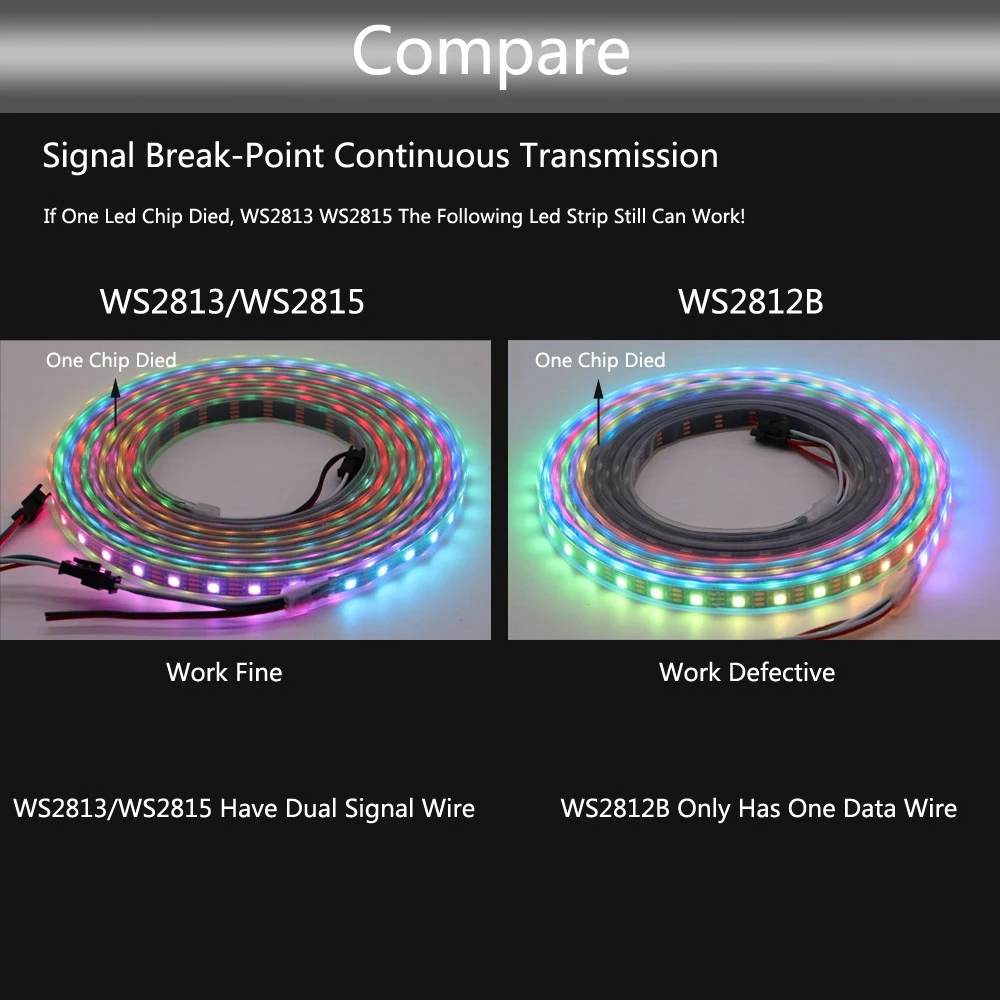

Connector: 4PIN connector terminal pair (Red: 5V power, Green: Date line, Blue: standby date line, Black: GND)

Recommand controllers: T-1000s,T-8000A;T-100K;T-200K;T-300K

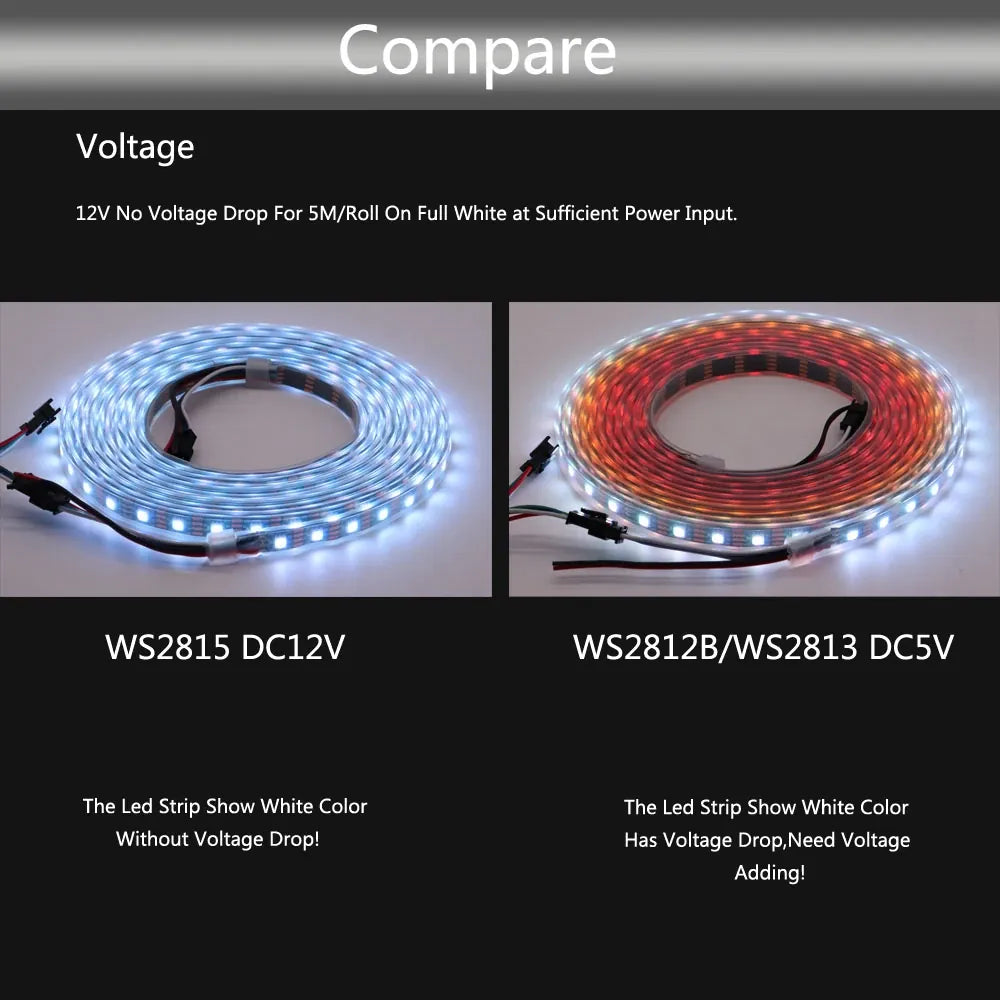

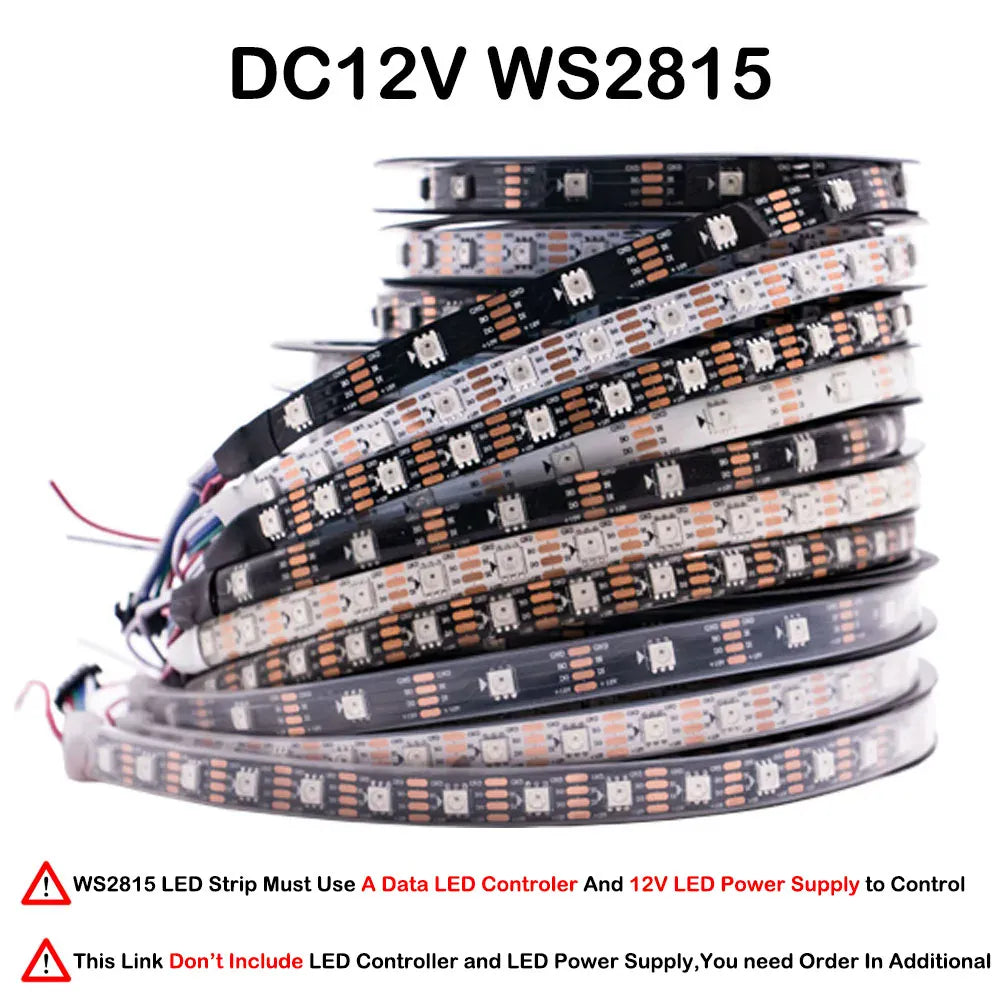

WS2815 LED Strip:

Input voltage:DC12V;

Power:

30leds/m----9watt/meter

60leds/m----18watt/meter

144leds/m----34watt/meter

LED resource: WS2815 led(5050 SMD RGB LED with built-in improved version of ws2811 ic)

LED: Each LED is separately controlled

IC Type: Improved Version WS2815 IC(built inside the 5050 smd rgb led)

of IC: (1 IC drives 1 led chip);

Pixels: 30/60/144/meter;

Pitch: 16.6mm(1000/64);

Grey scale: 256;

Bits/color: 8-bits/color;

FPC Width: :

30leds/m----10mm

60leds/m----10mm

144leds/m----12mm

FPC color: White/Black PCB

Protection rate: IP30/ IP65 /IP67

Colors: Full color RGB, dream color changing;

Cuttable: Every LED is cuttable;

Package: in anti-static bag,IP30 IP65 with 3M adhensive tape on the back(IP67 without 3M adhensive)

Working temperature: -40 ~ 70 °C

Storage temperature: -50 ~ 80 °C

Source life: 50,000 Hours

Connector: 4PIN Connector terminal pair

(Red: 12V power , Green: Date line, Blue: standby date line,Black: GND)
